安卓助手使用教程
下载
软件版本
| 飞行器类型 | 软件名称 | 版本 | 日期 | 官网下载 |
|---|---|---|---|---|
| 🛩️ 多旋翼 | 安卓助手 | 2.2.4.3 | 2026-07-15 | 点击下载 |
⚠️ 使用前置条件与注意事项：
• 将权限开放给软件
• 安卓设备保持联网状态
• 地面站软件需要停留在前台，且设备不能熄屏
• 联系汉鲲的工作人员并提供飞控的SN码，此处需要开放一个新的许可证
连接方式
数传连接
⚠️注意事项：如果使用数传连接需要准备一根C TO C的线，连接安卓设备与数传， 可到汉鲲小店上购买
点击查看汉鲲小店购买链接

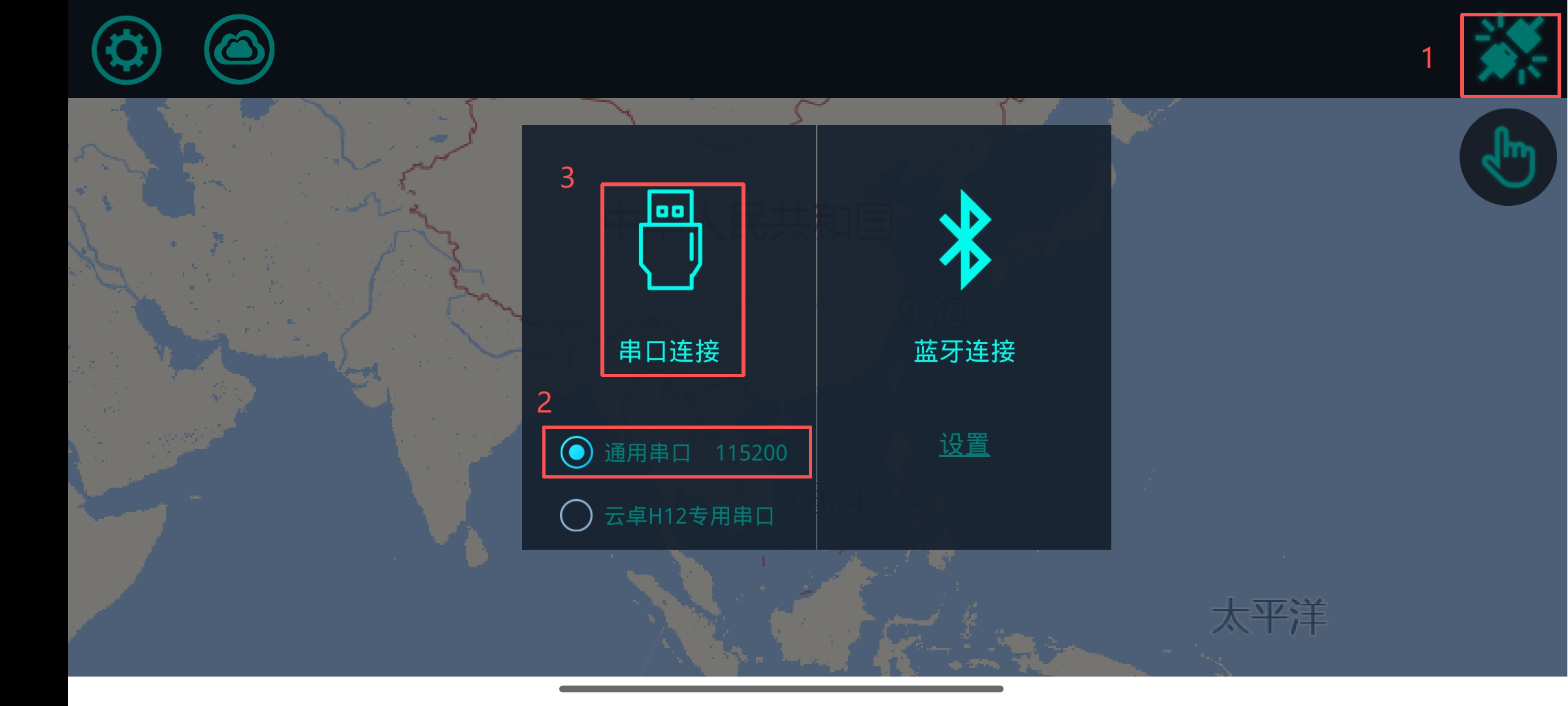

- 点击软件右上角
连接按钮 - 通用串口波特率为
115200 - 点击
串口连接
思翼遥控器FT24蓝牙连接
⚠️注意事项：遥控器连接请关闭无线教练模式，如需使用教练模式，请使用有线教练模式
- 遥控器中找到蓝牙名称（拓展设置—>蓝牙配置—>蓝牙名称，如
BLUE-5101162542） - 点击软件右上角
连接按钮 - 右侧蓝牙连接中点击
设置 - 点击

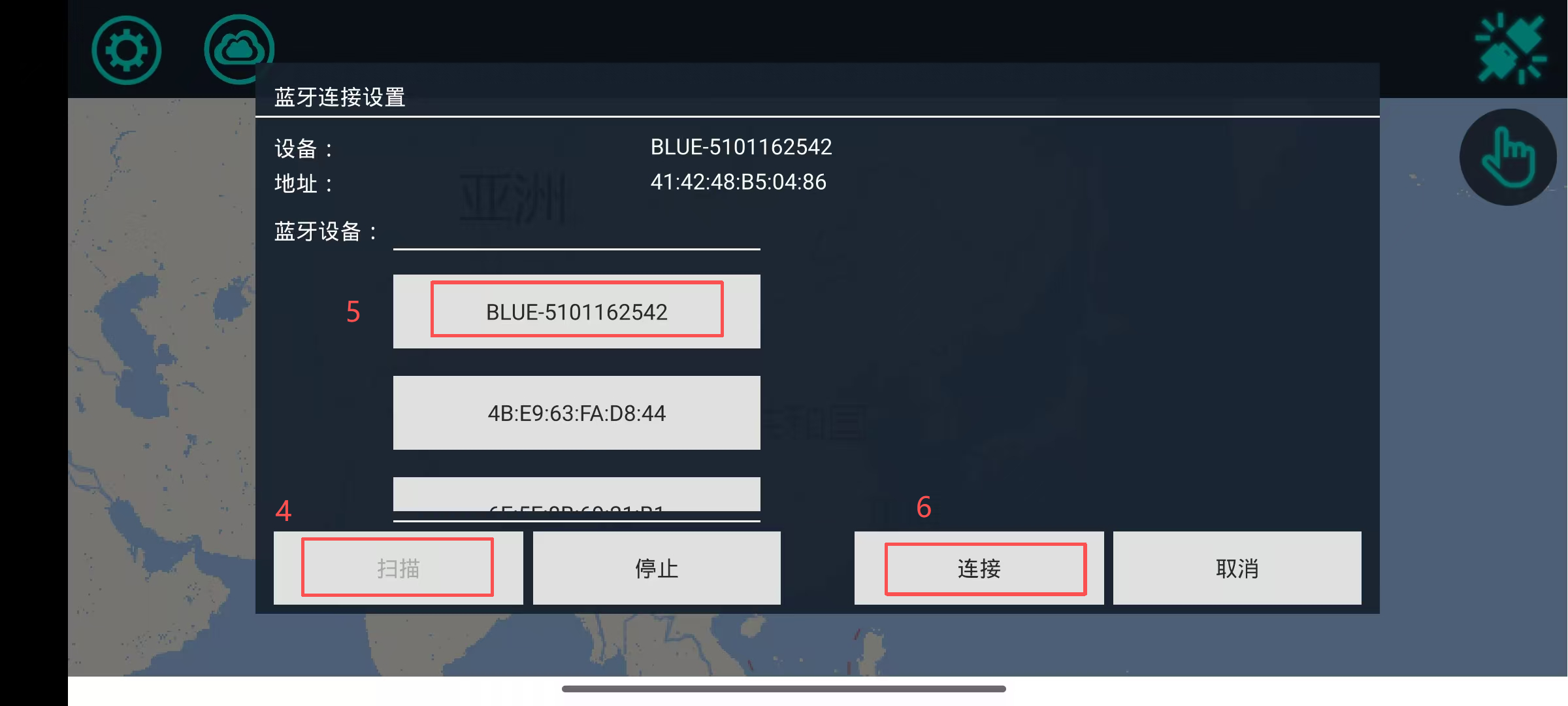

扫描按钮，找到对应的蓝牙名称（选择结尾处不含BLE的蓝牙名称，如BLUE-5101162542） - 点击选择对应蓝牙名称
- 点击
连接，等待读取参数，连接成功后，后续连接只需要点击蓝牙图标即可连接
奥帕云计时
- 连接地面站

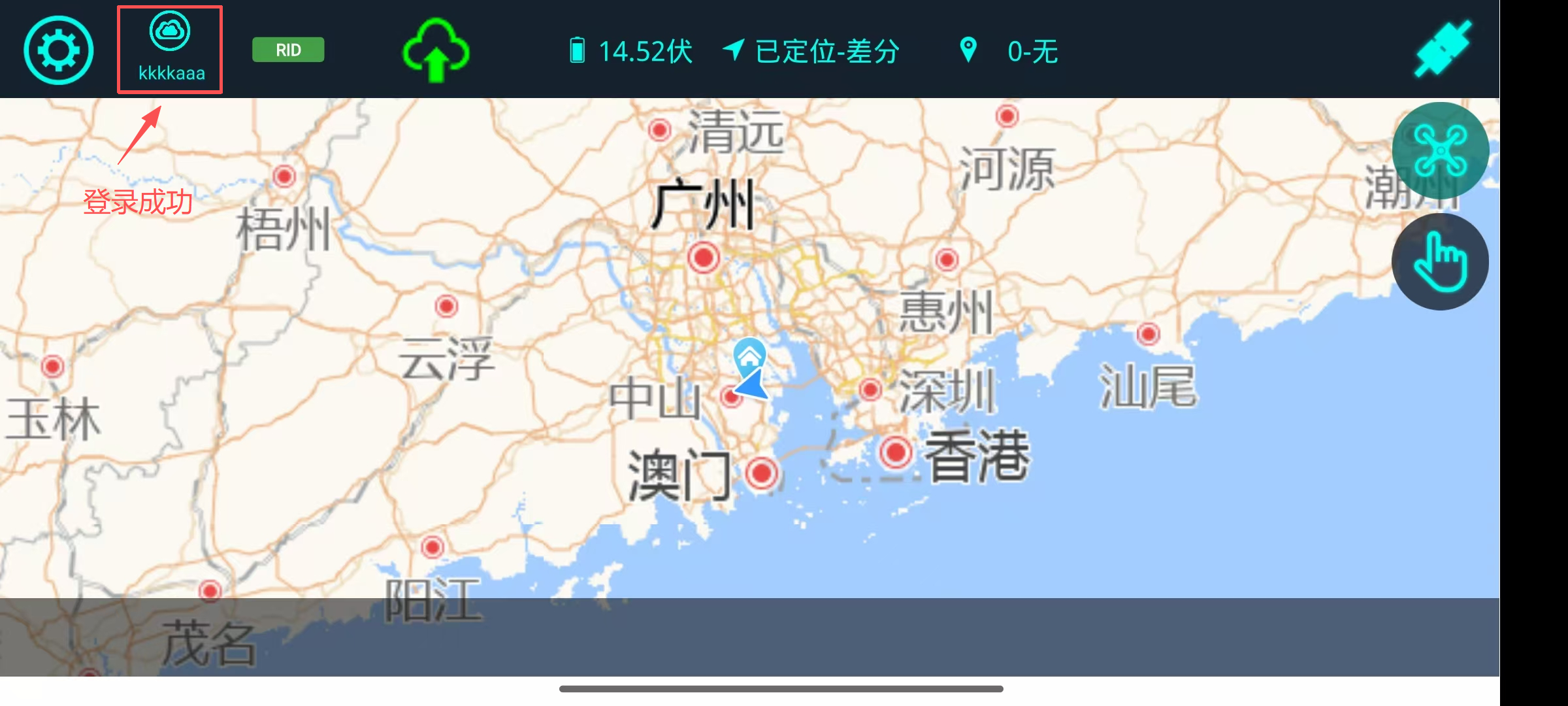

- 登录地面站云平台账号（此账号与Windows版地面站的账号是一致的）
使用方式

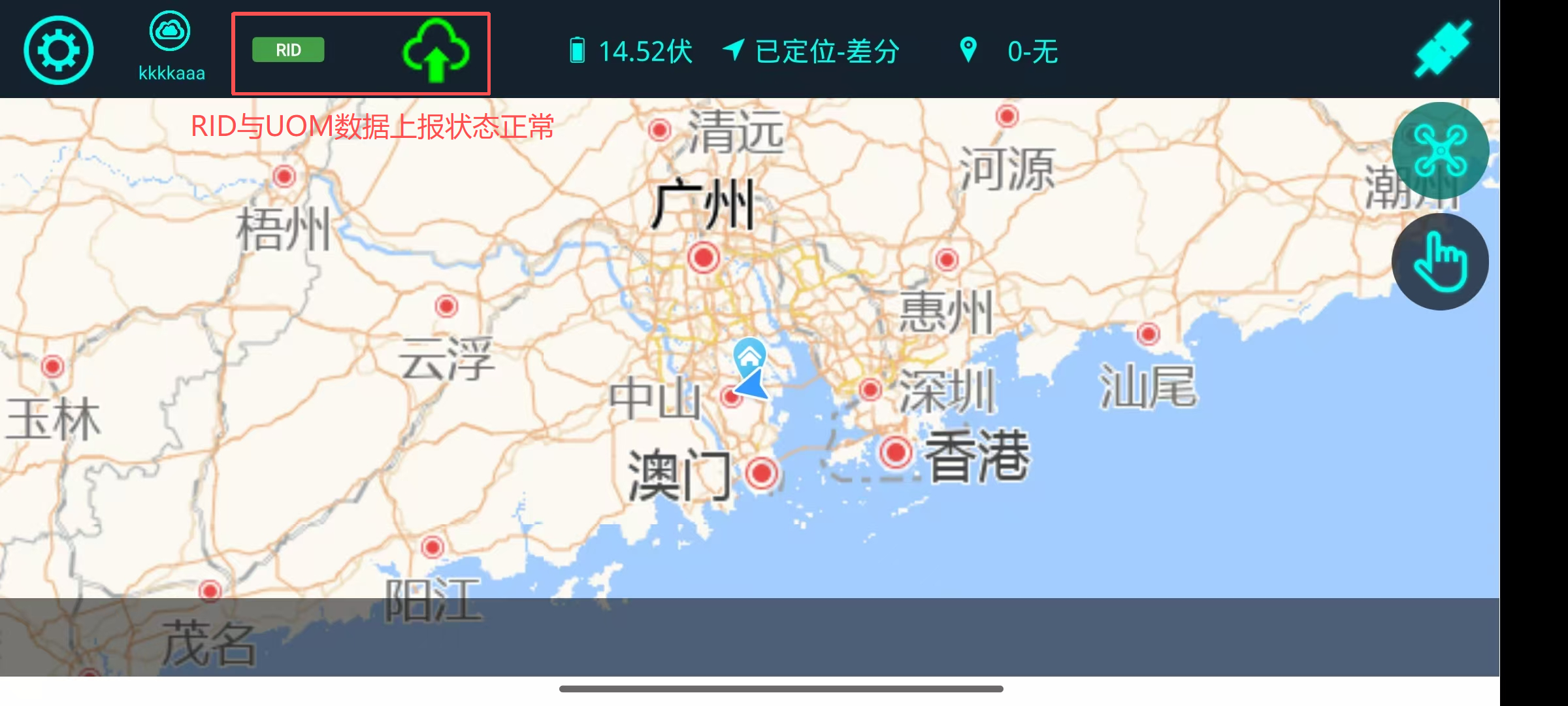

RID与UOM数据上报状态
- 状态：正常
当状态正常时，飞行器即可通过RID与UOM数据上报的自检，此时如无其他警报即可解锁飞行器
